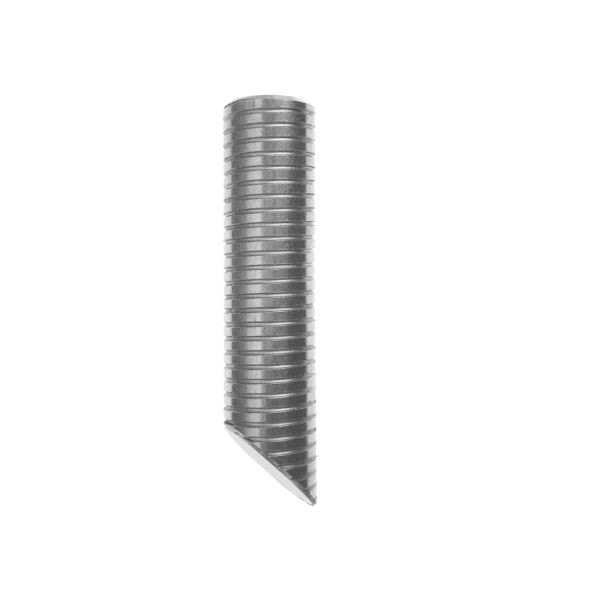

This product is a 10 x 90mm resin stainless steel internal socket designed to form a permanent, internally threaded anchor embedded into a chemical resin bond. It provides an M10 internal thread (ISO metric coarse thread M10 × 1.5) in situations where a conventional through-bolt cannot be used or where a removable, serviceable male fastener is required. The socket is intended to be installed into a drilled hole filled with a suitable chemical anchoring resin and allowed to cure, producing a strong retention of the internal thread within concrete, masonry or stone.

The socket is manufactured from A4 (316) stainless steel and supplied with a passivated bright finish to enhance corrosion resistance in aggressive environments. Material and production are in line with stainless fastener practice as described in ISO 3506; the thread form is produced to ISO metric thread standards (ISO 261/ISO 965, equivalent to BS 3643) ensuring compatibility with standard M10 bolts and studs. As an internally threaded insert it has no external head or driving feature—installation relies on positioning within the resin-loaded bore according to the resin manufacturer's installation method.

Typical applications include structural and secondary fixes where a concealed or flush fixing is required: anchorages for balustrades, façade brackets, cladding hangers, mechanical services supports and retrofit connections. The A4 stainless construction makes the socket suitable for marine, coastal, chemical processing and food industry environments where chloride resistance and low risk of corrosion staining are important. It is commonly used by contractors, installers and fabricators specifying chemical anchor systems for high-load or safety-critical fixings.

Key benefits are durable corrosion resistance provided by 316 stainless steel, reliable compatibility with standard M10 fasteners, and secure load transfer when used with the correct resin and installation procedure. The use of an internal threaded socket allows removal and replacement of bolts without disturbing the resin anchor and reduces risk of thread damage in the base material.

Duchy Fasteners stocks this JCP Fixings RCITS10SS internal socket in a range of lengths and diameters for chemical anchoring projects, available in single units and trade pack quantities—please contact us for current sizes and pack options.
