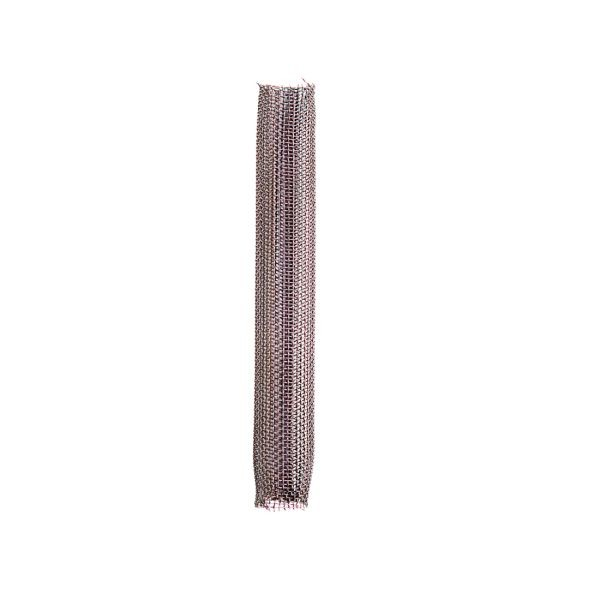

This product is a 1,000 mm long wire mesh sleeve designed as a containment tube for injection resin (chemical) anchor installations; it provides a confined cavity inside drilled concrete or masonry where resin can be injected and a threaded stud or bar inserted to form a bonded anchor. The sleeve is principally used where a consistent resin bond and prevention of wash-out are required for deep or heavily loaded anchors.

The sleeve is manufactured from welded wire and is normally supplied in galvanised mild steel for general use, with stainless‑steel (AISI 316) versions available for marine or chemically aggressive environments. The internal diameter is intended to accommodate 18 mm diameter studs or threaded bar while the sleeve body is commonly labelled RCMS16 to denote compatibility with 16 mm drill hole regimes and standard resin systems. The product is a passive accessory to metric threaded components manufactured to ISO/BS metric thread specifications (compatible with M16–M18 threaded bar/studs). The mesh construction allows injection resin to flow and bond around the bar while retaining the compound within the hole until cured.

Typical applications include structural anchorages, baseplate fixings, tie‑down points, balustrade and handrail installations, façade fixings and heavy machinery anchoring across construction, civil engineering, infrastructure and marine projects. The sleeve is routinely used where substrate integrity requires a controlled resin volume and where debris or water could otherwise dilute or wash away the injected adhesive during installation.

Key benefits are reliable containment of the adhesive, improved and repeatable load transfer from stud to substrate, and protection of the uncured resin from voiding or contamination. The galvanised finish gives corrosion resistance to general atmospheric conditions in line with BS EN ISO 1461; the 316 stainless option offers superior resistance for coastal, offshore and chemical plant environments. Compatibility with standard metric threaded bars and studs simplifies specification and ensures the sleeve integrates with commonly used resin capsules and injection systems approved under relevant ETA/BS guidance when installed as per resin manufacturer recommendations.

Duchy Fasteners holds a selection of mesh sleeves and associated resin accessories in stock, typically in multiple diameters and lengths (including 500 mm, 1000 mm and bespoke cut lengths) and sold in practical pack sizes; contact us for exact availability and recommendations for your anchoring system.
