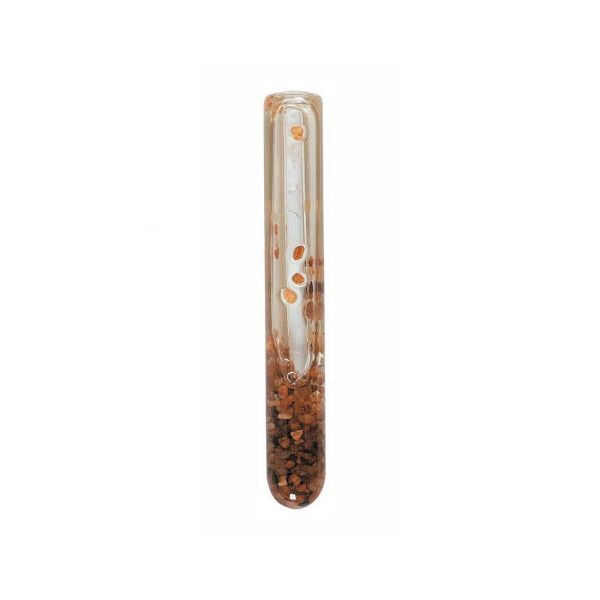

The 20mm x 160mm Epoxy Acrylate Capsule is a single‑use, spin‑in glass chemical anchor designed to create a high‑strength bonded connection between threaded rods or studs and base materials such as concrete, brick and natural stone. The capsule contains a two‑component epoxy acrylate resin and hardener separated by a glass tube; insertion and rotation of the spin‑in capsule breaks the glass and mixes the components to form the adhesive bond in situ.

The capsule body is glass and the adhesive is an epoxy acrylate formulation selected for good adhesion to mineral substrates and steel. It is intended for use with metric coarse threaded rod/studs (ISO metric threads), commonly M12 to M30 depending on the anchor system and load requirements. The chemical anchor system should be specified and installed in accordance with ETAG/ETA (EAD) guidelines and national standards such as BS EN 1992 where relevant to structural design and installation. The cured resin produces a hard polymer matrix that resists moisture and many site contaminants; it is suitable for use with stainless steel (A2/304 and A4/316) or zinc‑plated steel anchors according to required corrosion performance.

Typical applications include structural fixings such as balustrades and handrails, safety barriers, façade anchors, mechanical and electrical supports, and civil engineering connections where line‑loads or tension loads are transferred into base materials. The product is used across construction, infrastructure, rail, marine and industrial maintenance where reliable bonded anchors are required and where drill‑in adhesive fixing provides superior load performance to mechanical anchors.

Key benefits include excellent bond to masonry and concrete, compatibility with a variety of anchor rod materials to achieve required corrosion resistance, and the ability to accommodate non‑standard hole geometries and variable concrete conditions. Cure time and bond strength are temperature and substrate dependent; installers should follow manufacturer guidance and cleaning/installation procedures for certified load performance.

Duchy Fasteners stocks the 20mm x 160mm spin‑in epoxy acrylate capsules (RCCAP20) for trade and site use and supplies complementary threaded rods, application tools and technical data sheets. Capsules are available in trade pack quantities — please contact us for current pack sizes and lead times.
